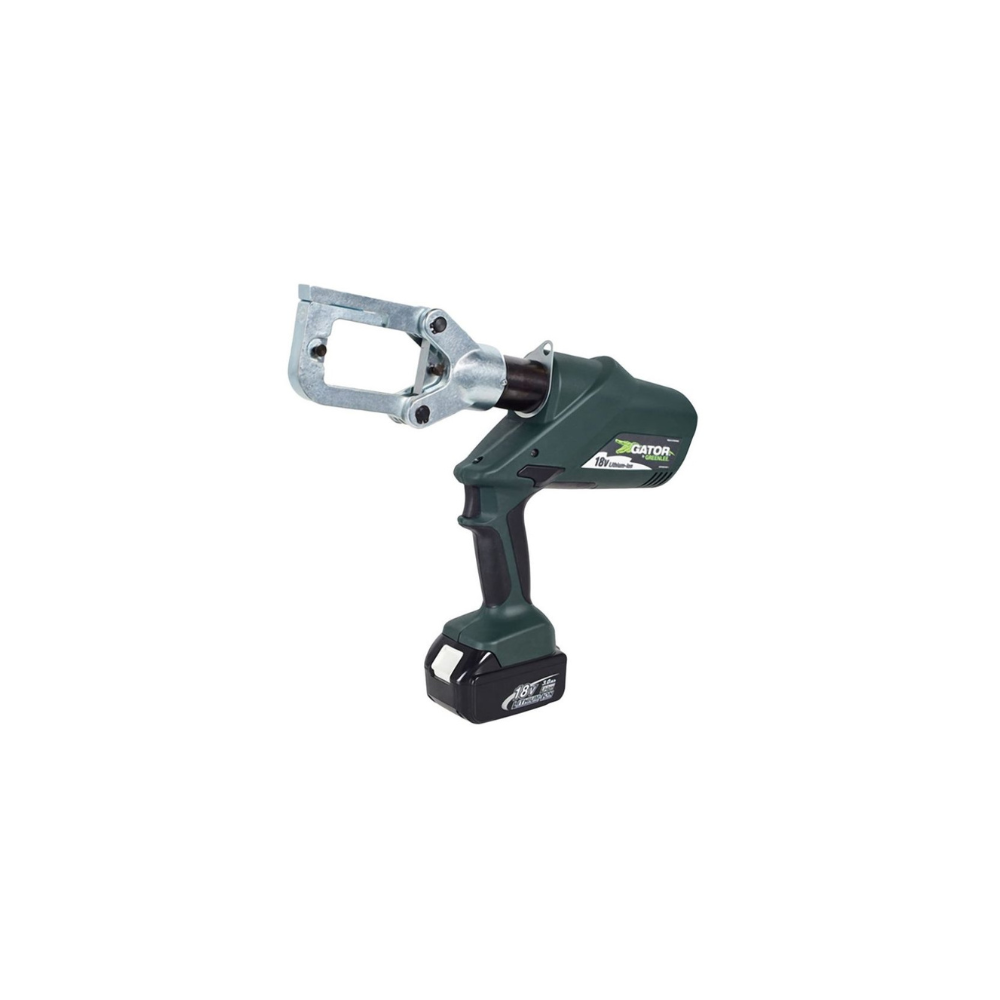

Greenlee Crimper Tool, Gator Pro-LI Bat 230V Charger

Product Overview: Greenlee Crimper Tool, Gator Pro-LI Bat 230V Charger

ECCXL22

• Intelligent Crimping System Technology Includes A Pressure Sensor That Monitors The Crimping Force Of Each Crimp And Provides The Operator A Visual And Audible Alert If The Force Is Below Specifications
• State Of The Art 18V Lithium Ion (Li-ion) Battery Provides 70% More Cycles Per Charge And Faster Cycle Times
• Retraction Stop Repeat (RSR) Allows The Operator To Partially Retract The Ram And Then The Tool Repeats The Retraction For Subsequent Crimps
• LED Light Provides The Operator With The Battery Charge And Tool Maintenance Status
• Two-Stage Hydraulic System Provides Fast Advance And Power Speeds, Saving Time
• Forward Handle Position Improves Tool Balance
• One Trigger Controls All Tool Functions
• Crimping Head Rotates 350°
• Tools Automatically Retract When The Crimping Or Cutting Cycle Is Complete
• Overmolded Tacky Grip Areas Make Gripping The Tool Easier And More Comfortable
• LED Work Light Illuminates Dark Work Areas
• Greenlee Battery-Powered Crimping Tools Now Use Bio-Degradable Oil
• Smart Chargers Control The Charging Current, Charging Voltage And Battery Temperature To Maximize Battery Life
• Available With 120V, 12V or 230V Battery Charger Or With 120V or 230V Corded Adapter In Place Of Batteries And Charger
• Use Optional CCX Blades And Adapters
• U.S. Patent #6,206,663, #6,532,790,
• When used with Greenlee KC22 and KA22 dies in combination with Anderson®, Blackburn®, FCI Burndy®, ILSCO®, Panduit®, Penn-Union® and Thomas& Betts® color-coded connectors, connections up to 600 kcmil (copper) and 350 kcmil (aluminum) are UL and cUL classified. These tools also accept Greenlee, Burndy®, Kearney®, Blackburn®, Panduit® and Thomas & Betts® dies used for 6-ton tools. They can drive knockout punches up through 2′ diameter

Specifications:

• Accessory : 12274 Carrying Strap
• Battery : 18 V, 3.0 AMP-HR Lithium-Ion
• Battery Charge Time : 1 HR
• Crimping Force : 12000.000 LB (53.000 KN)
• Estimated Cycles per Charge : 300
• Overall Length : 16-1/2 IN (375.000 MM)
• Replacement Part : 52176 18 V, 3.0 Ah,Li-ion Battery, 10122 Carrying Case for E12CCXL & ECCXL, 52178 120 V Charger, 52179 12 V Charger, 52180 230 VCharger
• Rotation : 350 DEG
• Standard : C/US UL Listed
• Sub Brand : Gator
• Type : Battery Powered
• Weight : 14.000 LB (6.300 KG)
