Swagelok
SWAGELOK SS-RL4M8F8 Stainless Steel Low Pressure Proportional Relief Valve, 1/2 in. MNPT x 1/2 in. FNPT
SWAGELOK SS-RL4M8F8 Stainless Steel Low Pressure Proportional Relief Valve, 1/2 in. MNPT x 1/2 in. FNPT
SKU:

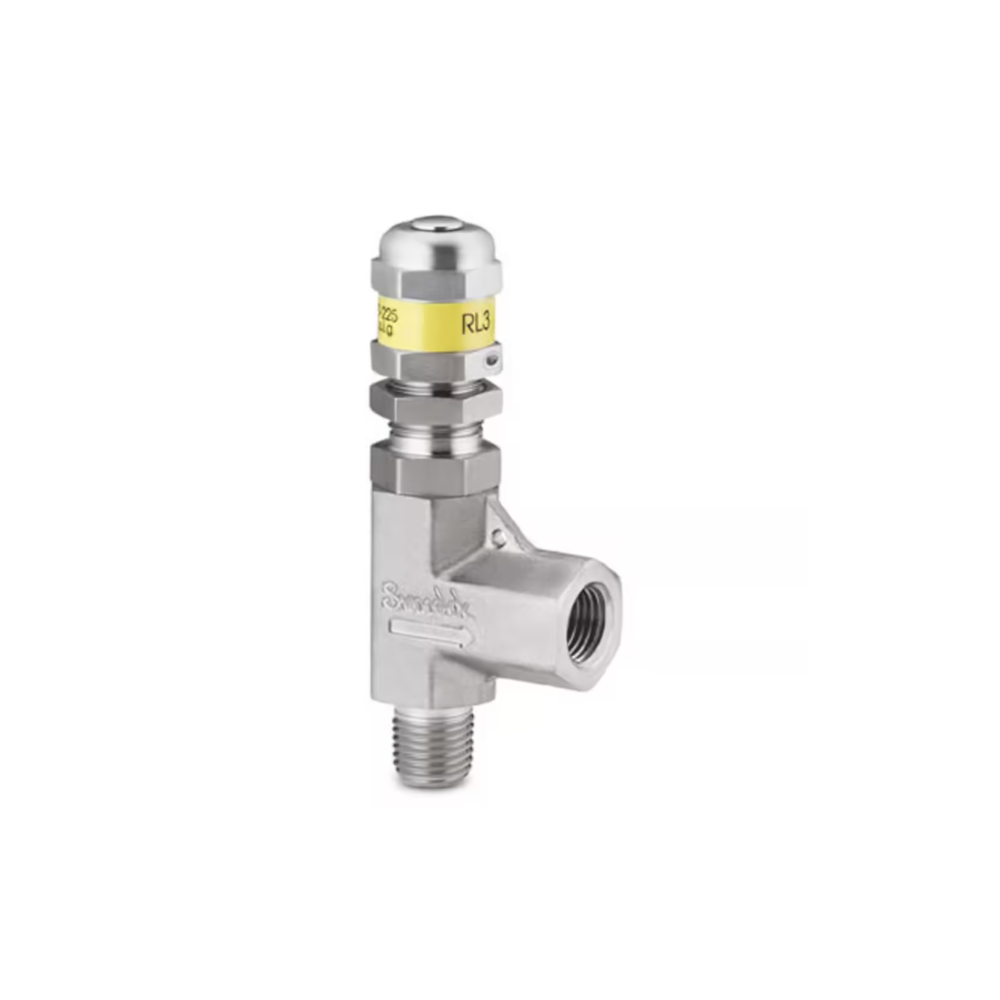

SWAGELOK SS-RL3M4-F4
Stainless Steel Low Pressure Proportional Relief Valve, 1/4 in. MNPT x 1/4 in. FNPT
Specifications
| Attribute | Value |
|---|---|
| Body Material | 316 Stainless Steel |
| Cleaning Process | Standard Cleaning and Packaging (SC-10) |
| Connection 1 Size | 1/4 in. |
| Connection 1 Type | Male NPT |
| Connection 2 Size | 1/4 in. |
| Connection 2 Type | Female NPT |
| Handle Style | No Handle |
| Room Temperature Pressure Rating | 225 PSIG @ 100°F /15.5 BAR @ 37°C5 |
| Seal Material | Fluorocarbon FKM |
| Service Class | Low Pressure |
| Testing | No Optional Testing |
| eClass (4.1) | 37010901 |
| eClass (5.1.4) | 37019901 |
| eClass (6.0) | 37010901 |
| eClass (6.1) | 37019901 |
| UNSPSC (4.03) | 40141606 |
| UNSPSC (10.0) | 40141606 |
| UNSPSC (11.0501) | 40141606 |
| UNSPSC (13.0601) | 40141606 |
| UNSPSC (15.1) | 40141606 |
| UNSPSC (17.1001) | 40183109 |
