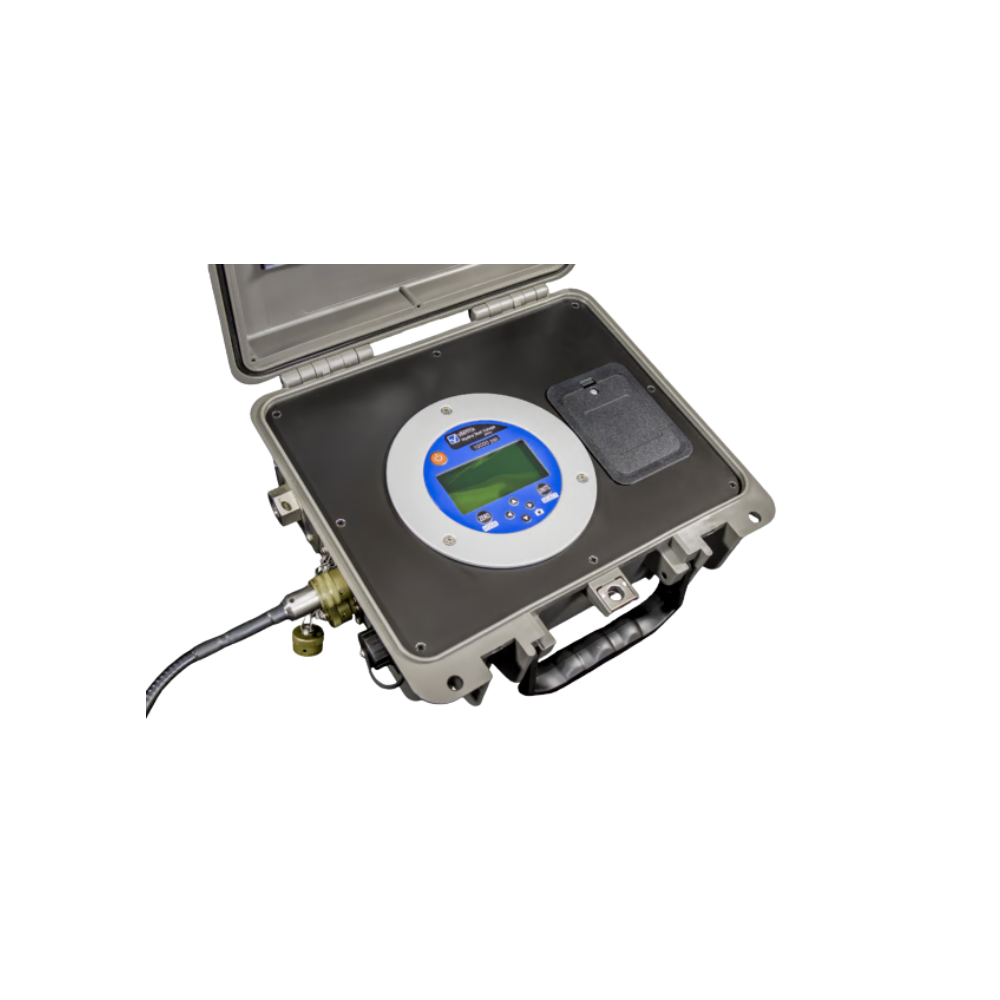

Vaetrix DCR2- Digital Chart Recorder
Vaetrix DCR2- Digital Chart Recorder
SKU:
Product Overview: DCR2- Digital Chart Recorder
Smaller, stronger, lighter, and now IP54 water resistant with the lid the open!
Compact, Purpose-Built Design for Hydrostatic or Pneumatic Pressure and Temperature TestingNow available in a smaller, more portable form factor.
Quick & Simple Test Report GenerationEasily create and email PDF test reports in just minutes.
Extensive Datalogging CapabilitiesRecord up to 32,000 readings using the included Hydro Data Management Software. Upgrade with PC Live software for real-time monitoring and direct data storage on a Windows PC.
User-Friendly InterfaceIntuitive menu navigation with on-screen LOG indicators to confirm data capture and memory storage.
Wireless Monitoring with Bluetooth & Mobile AppMonitor pressure values wirelessly via the Vaetrix Hydro App—available free on Google Play and the Apple App Store.
Extended Battery LifeOver 200 hours of typical use on 3 AA alkaline batteries, with optional lithium power pack for extended backup lasting months.
Flexible Temperature Probe OptionsChoose between 1 or 2 temperature probes based on your testing needs. Select your preferred RTD probe length.
Enhanced Connectivity and CompatibilityAll units now come standard with Bluetooth and dual RTD inputs.
Rugged USB-C PortIP65-rated USB-C connection for reliable data streaming and extraction.
Custom Carrying SolutionIncludes a dedicated canvas bag for RTD probes and fittings.
Product Specifications
Model Options: DCR 2 (Combines HTGX and DCR Old Design into one package!)
Pressure Accuracy: ±0.05% Full Scale or ±0.1% Full Scale above 10K (Includes all effects of linearity, hysteresis, repeatability, temperature, and stability based on one year)
Dimensions: 9.75″ x 10.7″ x 4.8″ (DCR2)
Power: 3AA Alkaline Batteries or USB C
Operating Range: 12°F to 122°F (-10°C to 50°C)
Storage Range: -10°F to 150°F (-23°C to 65°C)
Update Rate: Four readings per second
Process Connection: 1/4″ FNPT with backer plate up to 14,500 PSI. HF4 autoclave for 20K and above (9/16-18 Female with a 60° tapered seat.
Bluetooth: BLE Low Energy, registered under FCC: WAP2001
Available Ranges
*0.05% FS Accuracy
-12 to 30 PSI (2.0 Bar)
-12 to 100 PSI (7.0 Bar)
-12 to 300 PSI (20 Bar)
-12 to 500 PSI (35 Bar)
0 to 1000 PSI (70 Bar)
0 to 2000 PSI (140 Bar)
0 to 3000 PSI (200 Bar)
0 to 5000 PSI (350 Bar)
0 to 10000 PSI (700 Bar)
*0.1% Accuracy
0 to 14500 PSI (1000 Bar)
0 to 20000 PSI (1380 Bar)
0 to 30000 PSI (2068 Bar)
